性能特点:

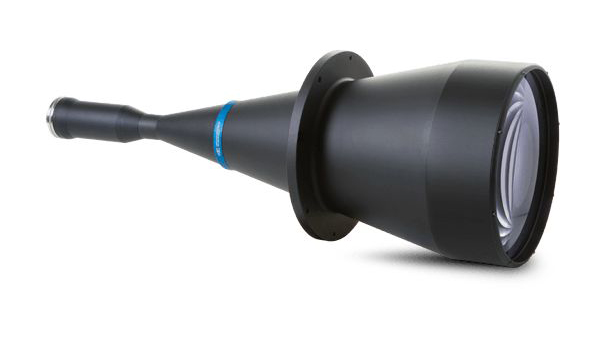

可以根据客户需求和实际工程要求提供工业镜头,高分辨率,面面清晰度高。支持短工作距,低畸变,高周边光量比
HF系列
技术参数:
焦距 | 6mm | 8mm | 12mm | 16mm | 25mm | 35mm |
型号 | JLF-HF0628M-6MP | JLFHF0828M-6MP | JLF-HF1228M-6MP | JLF-HF1628M-6MP | JLF-HF2528M-6MP | JLF-HF3528M-6MP |
F数 | F2.8 | F2.8 | F2.8 | F2.8 | F2.8 | F2.8 |
最近摄距(M) | 0.09 | 0.04 | 0.06 | 0.07 | 0.15 | 0.18 |
滤镜尺寸 | ~ | M27*P0.5 | M27*P0.5 | M27*P0.5 | M25.5*P0.5 | M27*P0.5 |
C接口 |
SA系列
技术参数:
焦距 | 12mm | 16mm | 25mm | 35mm | 50mm | 85mm |
型号 | JLF-SA1220M-10MP | JLF-SA1620M-10MP | JLF-SA2520M-10MP | JLF-SA3520M-MP | JLF-5020M-10MP | JLF-SA8520M-10MP |
F数 | F2.0 | F2.0 | F2.0 | F2.0 | F2.0 | F2.0 |
最近摄距(M) | 0.15 | 0.1 | 0.15 | 0.2 | 0.3 | 1.2 |
滤镜尺寸 | M77*P0.75 | M58*P0.75 | M46*P0.75 | M40.5*P0.5 | M40.5*P0.5 | M77*P0.75 |
C接口 |
